Couplers

We are at the forefront of design and manufacturing of High Tensile Tight-Lock AAR ‘H‘ Coupler Head with Balanced Draft Gear for Mainline Passenger Coaches for the Indian Railways and confirm to the latest RDSO specifications.
Our team of talented in-house R&D experts along with strict quality controls and extensive testing make us the leader in supplying high quality Coupler Systems to the Indian Railways and in providing a safe and secure journey for the passengers.

The couplers are used to couple two adjacent coaches or a coach to alocomotive. When connected to the coupler of the next coach, the couplerallows the coaches to move, accommodate track curvature and buffer height changes while all the time remaining in coupled condition.

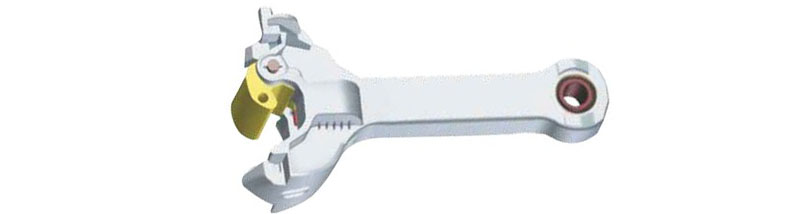

The AAR ‘H’ type coupler head is provided with aligning wings, located at either side of the coupler head. The wings are interlocked when coupled with the adjacent coupler. Interlocking prevents the vertical movement of the couplers with respect to each other. This feature ensures the ANTI CLIMBING of the coaches on each other in case of an accident.

Key Features

  • CORE SUN POWER ENGINEERING PVT. LTD. couplers with AAR ‘H’ type head can be coupled with similar couplers of other makes as well as couplers with E type head
  • Provides full anti climbing feature by insuring positive interlocking of the couplers
  • The Draft Gear is based on the balanced forces, thus eliminating the jerky ride
  • No striking Plates in the Draft Gear ensures no undesirable sound during buffer, resulting in passenger comfort
  • The polymer spring pads, placed in series, ensure smooth buffing due to balance in forces
  • Absence of striking plates also reduces the loading pattern on the Front and Rear stopper as no impact loading is experienced

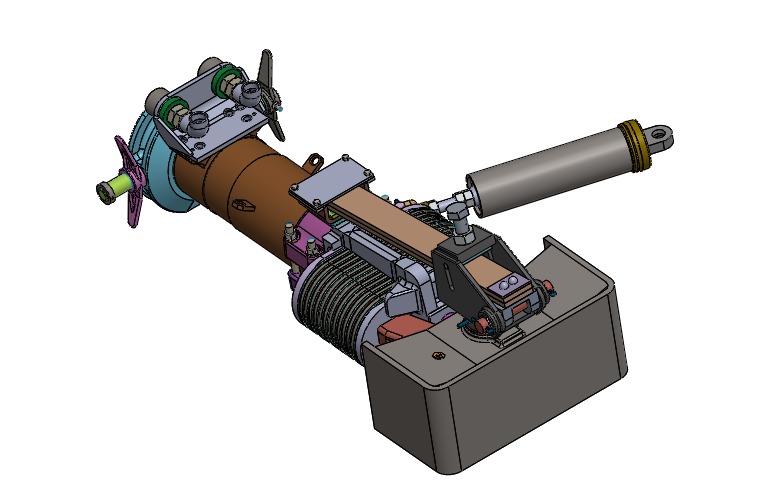

AAR-H Couplers for Passenger Coaches

CORE SUN POWER ENGINEERING PVT. LTD. AAR-H type coupler has been developed in-house for passenger coach application. It is a high tensile tight lock centre buffer coupler.

Salient Features
  • This coupler system offers anticlimb feature for safe journey of passengers in case of any derailment / accident
  • Capable of hauling long rakes with full passenger safety and ride comfort
  • All castings are passed through rigorous RT & MPI testing to filter the finest of the defects and pass only high class materials ensuring to meet high strength requirements
  • Free & wide (horizontal & vertical) articulation on its pivot makes seamless coach movement on curves and grids
  • Enhanced anti-creep property to avoid any undesired train parting while running at high speed
  • Specially designed silent block used to connect coupler head to draft gear makes coupler operation jerk free
  • Coupler along with Balanced Draft Gear ensures safe and comfortable ride

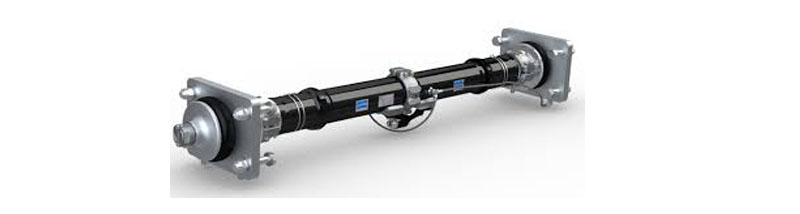

Semi Permanent Couplers

Provide safe and permanent connection of multiple units. Couplability of coupler halves is ensured by Adjustable Cup Sleeves.

Salient Features
  • Prevents overriding of coaches
  • Uniform distribution of the draft load
  • Jerk free start and braking
  • Cushions axial movement of coaches
  • Rigid and slack free connection
  • Enables the connection of air pipes

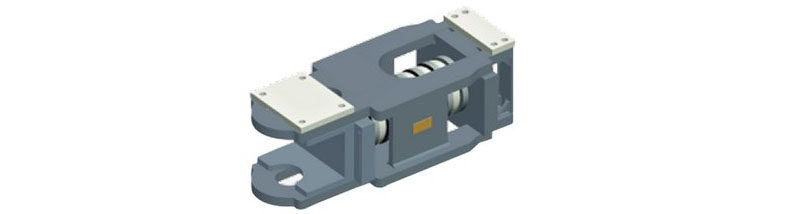

Balanced Draft Gear for AAR-H Coupler

The Balanced Draft Gear is an enhanced design which consists of 2 separate packs of elastomeric pads for buff and draw modes and aims to provide jerk free and smooth train operations.
The Balanced Draft gear arrangement can absorb energy of 35 kJ (minimum) under dynamic force application of 1600 kN (maximum force generated during the train dynamics). The elastomeric pads arrangement offers high damping factor, greater than 60% which helps smooth & vibration free movement of trains at high speeds.

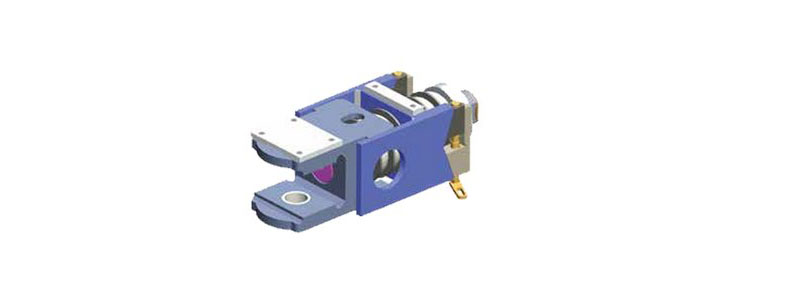

Standard Draft Gear for AAR-H Coupler


Draw gear arrangement serves to cushion the tensile and compressive loads produced under train operation and absorbs the energy of 45kJ (minimum) which is generated during the train dynamics. This standard draft gear consists of a pack of highly non-linear elastomeric pads to absorb energy generated in longitudinal train dynamics.
Designed for high damping factor, greater than 60% makes train operation smooth in acceleration & deceleration and longitudinal train dynamics.
Draft gear with customer’s specification can be designed and supplied.
